New products solar energy system buffer tank 1000l

 New products solar energy system Buffer Tank 1000l

Brief of buffer tank 1000l

Details for buffer tank 1000l



Technical data of buffer tank 1000l



PAWT buffer tank 1000l
Nominal capacity	L	50 / 80 / 100 / 120 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800
Inner tank diameter	mm	Φ370 /  Φ370 /  Φ370 /  Φ370 /  Φ370 / Φ470 / Φ470 /  Φ500 /  Φ600 /  Φ600 /  Φ650 /  Φ700 /  Φ700
Inner tank material		SUS304 , SUS316L, duplex stainless steel (<500L)
Out shell material		Galvanized steel with painting, stainless steel
Out shell color		White, silver-grey, blue, red
Max. working pressure	bar	6
Max. testing pressure	bar	10
Max. running temperature	oC	90
E-heater		Flange welded type, screw thread type (optional)
Mg. anode		Optional



Material for buffer tank 1000l



1.Material of out shell:  Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.

2.Material of inner tank: Duplex stainless steel 2304/2205, SUS304, SUS316L are available.

3.Insulation: polyurethane resin foaming / PU soft coat.

4.Material of inner coils: Copper / stainless steel / wave stainless steel.

Unique technology/advantage

Feature & charecter



 1.PHNIX is NO.1 stainless steel water tank manufacturer in China to use butt-welding technology, duplex stainless steel material and developed hundreds different design tanks.

2. Our water tanks have gained CE and WaterMark certificates, and cooperated with customers to get  NFand UL certificates. Good help for you to sale the certificated products!

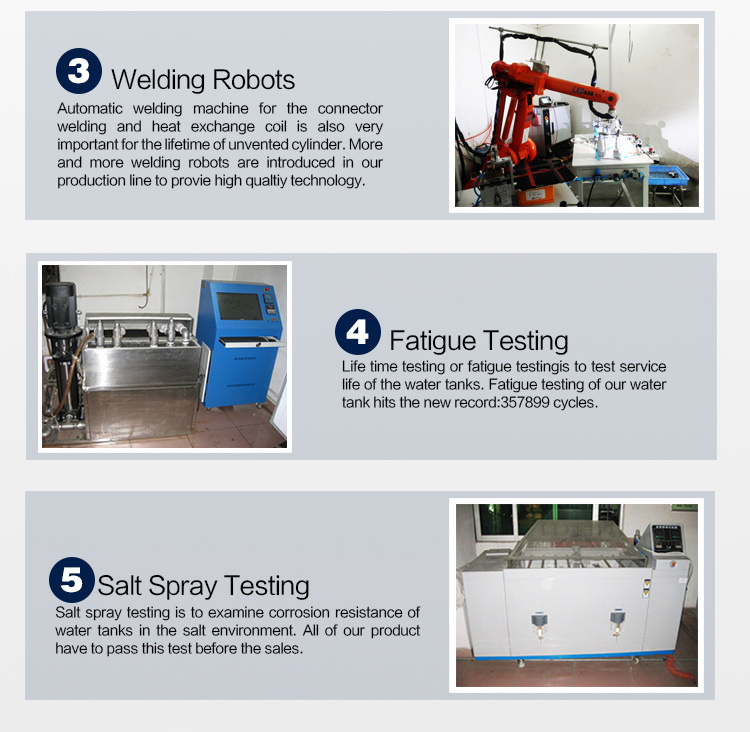

3.Process high-class auto welding machines, connectors ' hole punching machines, efficiency water leakage test requirements and professional testing laboratory, which double ensure to offer customers long-term reliable high quality products.

4.The most important thing is PHNIX have a well-educated technical & QC engineers team and a quick-act sales team, so that we can offer customers reliable and satisfaction OEM and ODM service.



Working principle



1. The solar collector absorbs solar energy and transit the heat to the tank through heating-liquid.

2. When the temperature of collector and tank bottom temperature difference reach to 8 degree, the circulating pump start running to take the solar heat to tank.

3. The tank Heat Exchanger Coil will transfer the heat with outside cold water to reach customer's hot water using.

4. If there is no sunshine or not enough sunshine, it can start E-heater, heat pump unit or other auxiliary heating sources ensure enough hot water for users.



Other type of water tank





Working process



PHNIX company

Contact us if you need more details on Buffer Tank 1000l. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Buffer Tank 1000l、Buffer Tank 1000l. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Hot Water Tank
