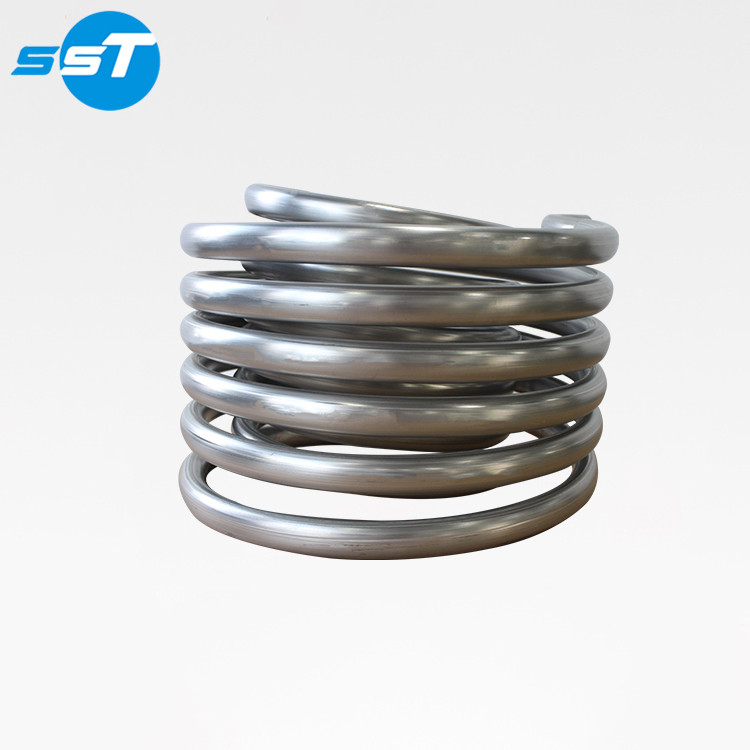

SST tube immersion stainless steel coil heat exchanger for water tank heating
Product Description
SST tube immersion stainless steel coil heat exchanger for water tank heating



Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
Out shell material | mm | galvanized steel with painting / stainless stell / PU | |||||||
Out shell color | white / silver-grey / blue /red / golden / stainless stell | ||||||||
Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
ERP Class | A | A | A | A | A | A | A | A | |
Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
Mg.Anode | mm | Φ22*300 | |||||||
Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
Packing size | mm | L:540 W;540 H:117 | L:630 W:630 H:1440 | L:670 W:670 H:163 | L:720 W:720 H:1920 | L:780 W:780 H:1930 | L:850 W:850 H:1940 | Φ900*2200 | Φ980*2420 |

Q1. Material?
For inner tank we have SUS304,SUS316L and Duplex 2205. The most popular is Duplex 2205. For the outer shell is galvanize with painting and stainless steel both are available.Also for the big tank we can do the PU coat.
Q2.Volume?
For now we can do from 20L to 1000L.
Q3. Lead time?
For the LCL order is 15 days after received the payment . for the container order is 25 days after received the advance payment.
